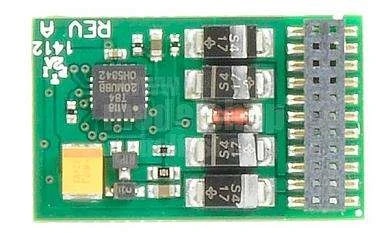

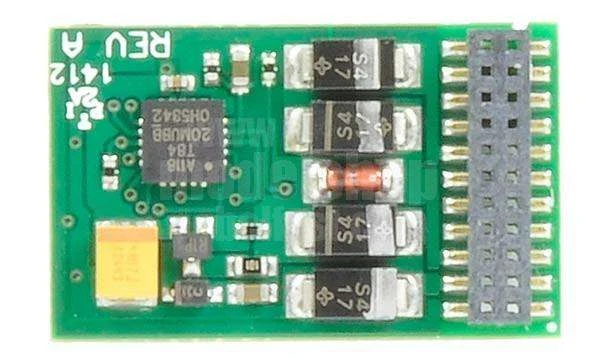

Bachmann 36-557 21 Pin DCC Loco Decoder

Highlights include:

Dual-mode DCC/DC decoder with Back EMF function

4 powered function outputs ( 2 logic level outputs)

0.9A continuous load

RailComPlus® for automatic registration on Dynamis Ultima

Suitable for models equipped with DC motors (including coreless motors)



Operating Modes

NMRA/DCC with 14, 28 and 128 speed steps

Short and Long addresses

DCC and DC operation (DC operation is de-selectable)

Automatic recognition of operational mode and DCC speed step selection

Supports Lenz® LG 100 braking sections

Motor Control Features

Suitable for models equipped with DC motors (including coreless motors)

0.9A continuous load

Silent & safe 20kHz pulse width frequency motor regulation

Motor output overload protection; Back EMF (de-selectable)

Function Outputs

4 powered function outputs with overload protection

250mA load per output

500mA total load of all function outputs

2 additional logic outputs

Shunting speed and momentum key selectable

Dimensions

25.5mm x 15.5mm x 4.5mm

Default Address

Address 3

Programming

DCC Service Mode & DCC PoM (Programming on Main)

Additional Features

RailCom® Feedback system

RailComPlus® automatic Registration
