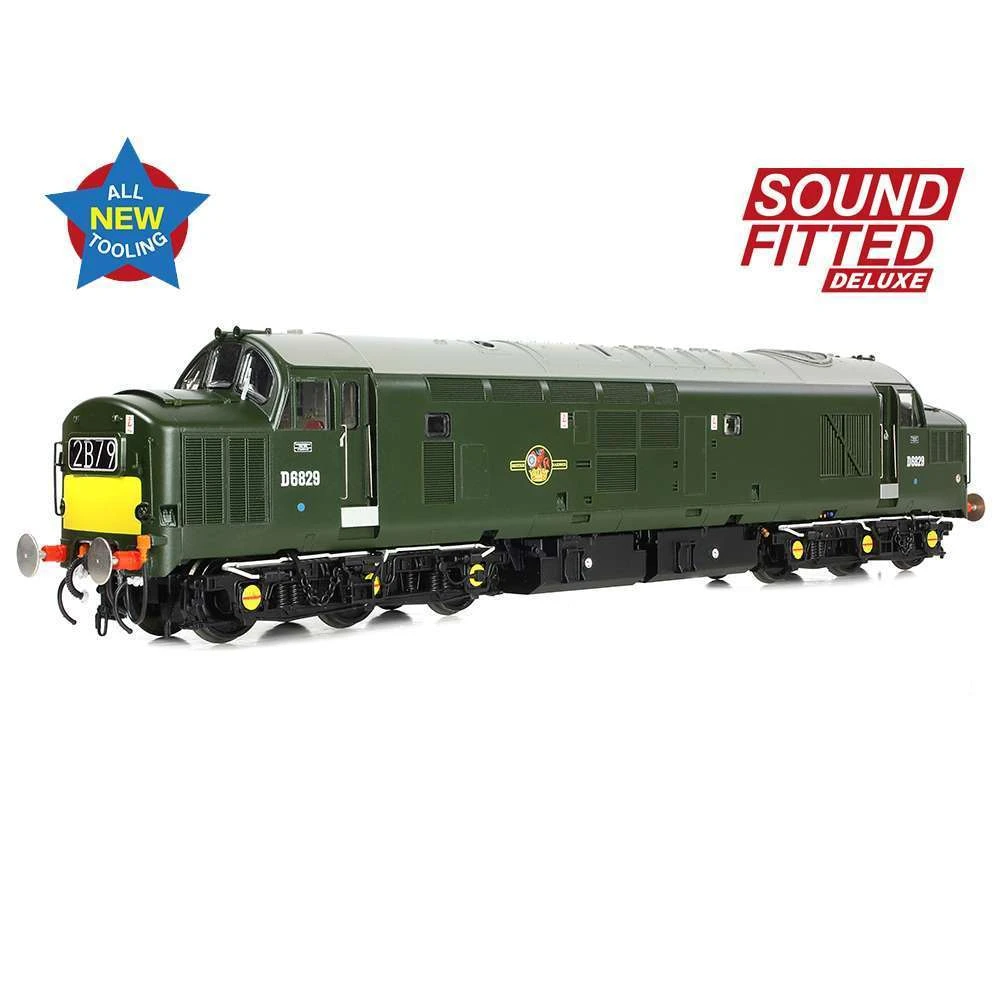

Bachmann 35-306SFX Class 37/0 Centre Headcode D6829 BR Green (Small Yellow Panels)

Bachmann Branchline OO Scale
Era 5
Pristine BR Green livery with Small Yellow Warning Panels
Running No. D6829
Length 245mm
DCC Sound Fitted

DETAIL VARIATIONS SPECIFIC TO THIS MODEL

Central Headcode Panels – Glazed displaying Blinds ‘2B79’ and ‘9A76’
Western Region Lamp Brackets
Headboard Clips
Corner Handrails
Original Buffer Beam Valances
Round Oleo Buffers
Original Windscreen
English Electric Cantrail Grilles
Etched Frost Grilles (optional part supplied separately)
Welded Boiler Roof
Original Open Boiler Port and Safety Valves
Original Water Filler Door and Access Steps
Fabricated Bogies
Original Speedo Drive
Mileage Counter
Original Water and Fuel Tanks
Water Filler Valve

BACHMANN BRANCHLINE CLASS 37 SPECIFICATION

MECHANISM:

Five pole, twin shaft motor with two flywheels providing drive to both bogies
All axle drive
Electrical pickup from all wheels
Separate metal bearings fitted to each axle
Diecast metal chassis block and bogie towers
Diecast metal gearboxes, with gearing arranged for prototypical running speeds and haulage capabilities
5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
Detachable coupling pockets to NEM362 standards fitted to each bogie
Designed to operate on curves of second radius (438mm) or greater
DETAILING:

Bogies constructed from multiple components featuring full relief detail
Rotating radiator fan, driven by an independent motor and gearbox, operated as part of the sound project on DCC and Analogue control
Tinted windscreen glazing
Separately applied metal detail parts, including grab handles, windscreen wipers and etched fan grilles
Sprung metal buffers
Each model supplied with a full set of decorated, model-specific bufferbeam pipework and accessory parts
LIGHTING:

Directional lighting, including headlights and high intensity headlights where applicable, switchable on/off at either end on DCC or Analogue control
Cab lighting*, assigned to two DCC functions for separate switching of each
Separately switched Engine Room lighting*
‘Yard Light’ mode*, red tail lights and/or marker lights displayed at both ends (*when used on DCC)
Authentic light colours and temperatures selected for each model based on era and application
DCC:

Plux22 DCC decoder interface
SOUND:

Two quality speakers employed for optimum sound reproduction, fitted to every model as standard
Zimo MS450P22 DCC Sound Decoder fitted to SOUND FITTED and SOUND FITTED DELUXE versions
Four sound projects to accurately capture the sounds of Class 37/0s as originally built, those with thermostatically controlled fans, Class 37/4s and DRS-modified locos.
Sound files for each project produced specifically for the Bachmann Branchline Class 37 using recordings from real locomotives
SOUND FITTED and SOUND FITTED DELUXE models operate on DCC and Analogue control as supplied. On Analogue, an authentic engine start up sequence and running sounds are produced when power is applied
LIVERY APPLICATION:

Authentic liveries applied to all models
Multiple paint applications employed on each model using BR and corporate specification colours
Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours
In addition, where applicable Etched Nameplates and Plaques are also provided
